Stainless Steel Vacuum Tubing Dimensions: OD, Wall Thickness & Gauge
A practical guide to reading tubing specifications and checking compatibility with industrial vacuum and pneumatic conveying fittings.
Understanding Stainless Steel Tubing Dimensions
Stainless steel tubing is specified using measurements that describe its size and wall. Three common terms are outside diameter (OD), wall thickness (WT), and gauge. Understanding these terms can help when reviewing product specifications, replacing existing sections, or selecting compatible couplings and fittings.
Dimensional requirements depend on the application, connecting components, and operating conditions. A nominal description alone may not provide enough information to confirm fit.
Outside Diameter, Wall Thickness & Inside Diameter
Outside Diameter (OD)
The diameter measured across the outside of the tube. OD is an important measurement when matching tubing to compression couplings, elbows, reducers, and adapters.
Wall Thickness (WT)
The thickness of the tube wall. Wall thickness may be shown as a decimal measurement or as a gauge designation, depending on the product specification.
Inside Diameter (ID)
The open diameter inside the tubing. For round tubing with a uniform wall, the nominal relationship is ID = OD − (2 × WT).
Gauge
A designation used for certain sheet-metal and tubing wall thicknesses. In a given gauge system, a lower gauge number typically indicates a thicker wall. Confirm the actual wall measurement rather than relying on gauge alone.
Example: A tube described as 4.000-inch OD × 0.065-inch WT has a nominal calculated ID of 3.870 inches. This example illustrates the calculation; it does not specify an available product or manufacturing tolerance.
Tube OD Versus Nominal Pipe Size
Industrial tubing is often listed by its actual outside diameter. Conventional pipe is commonly identified by nominal pipe size (NPS) and a wall schedule. These are different naming systems and should not be treated as interchangeable.
| Specification | Tubing | Conventional Pipe |
|---|---|---|
| Common size designation | Outside diameter (OD) | Nominal pipe size (NPS) |
| Wall designation | Wall thickness or gauge | Schedule or specified wall thickness |
| Connection check | Confirm actual OD and end configuration | Confirm actual OD, schedule, and joining method |
When ordering a replacement part, measure the existing tubing and review the original equipment or system specifications where available.

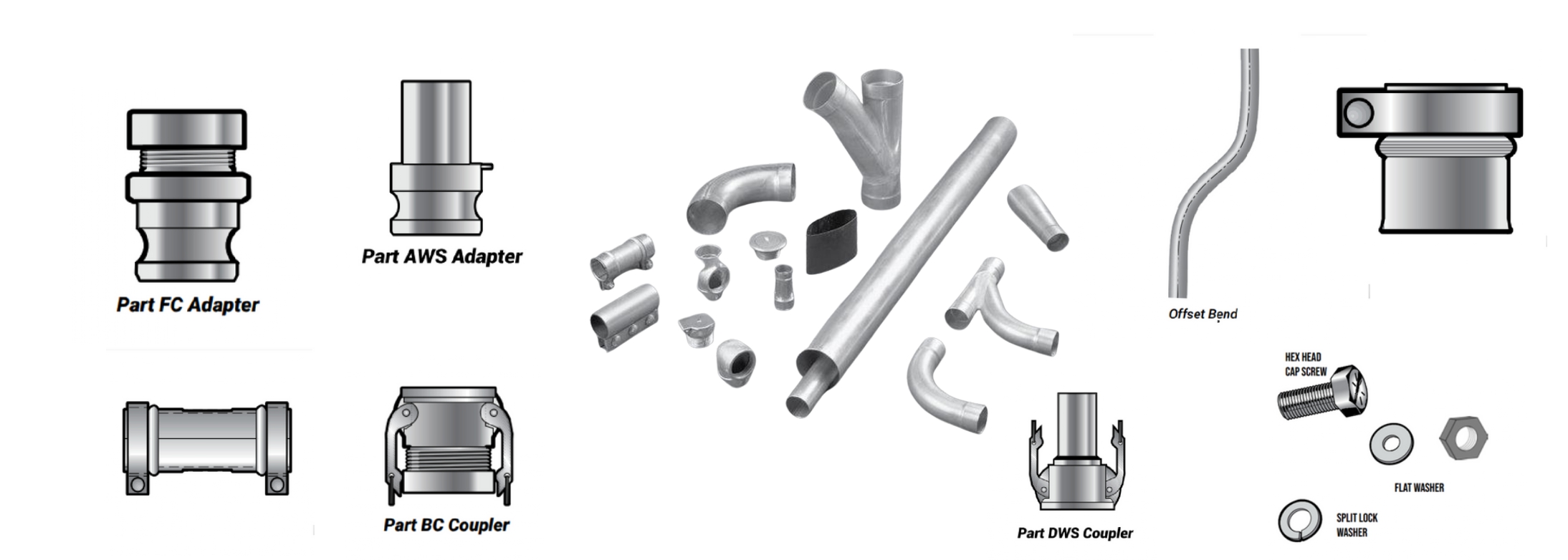

How Dimensions Affect Fitting Selection
Fittings should be selected to match the tubing and the intended connection method. Relevant details may include actual OD, wall thickness, end condition, tube roundness, surface condition, and gasket compatibility.

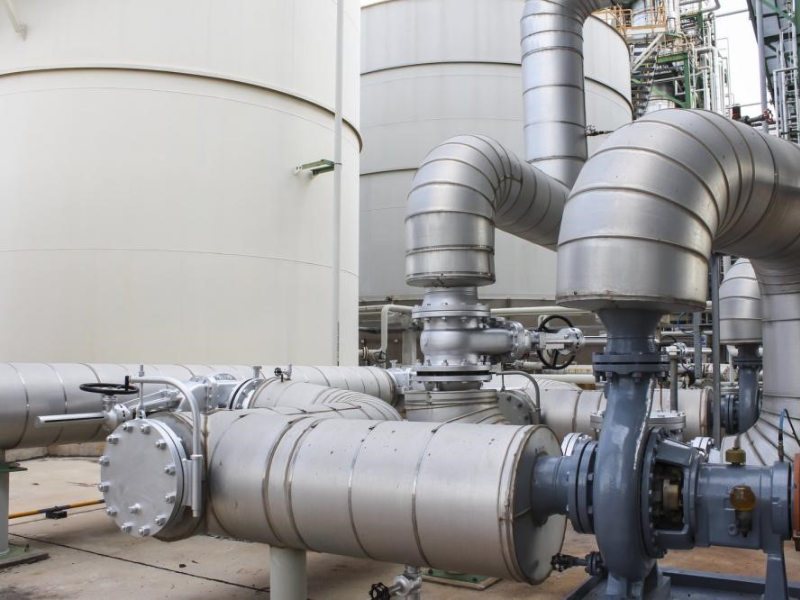

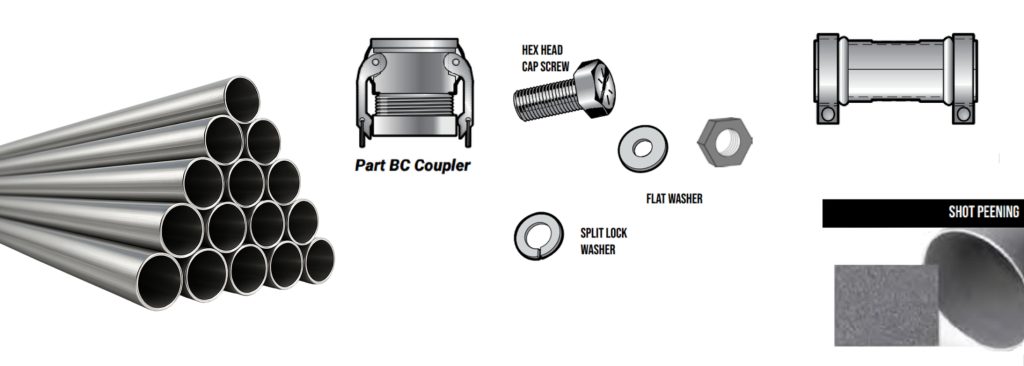

Compression Couplings
Check tubing outside diameter, coupling size range, gasket selection, end preparation, and the coupling manufacturer's installation instructions.
Elbows & Bends
Confirm OD, bend angle, centerline radius (CLR), material, wall thickness, and whether the ends are straight or expanded.
Reducers & Adapters
Identify both connection sizes and the type of end connection required at each side.
Branch Fittings
Confirm the main tubing OD, branch OD, branch angle or configuration, and available installation space.
See Compression Couplings, Industrial Vacuum Elbows & Bends, and Vacuum Pipe Reducers for related components.
Wall Gauge and Material Considerations
Stainless steel tubing may be specified by an alloy grade and a wall measurement. Material and wall selection depend on the conveyed material, corrosion exposure, anticipated wear, installation conditions, and system design.
304 stainless steel is used in a variety of industrial applications. 316 stainless steel is considered for certain environments where additional corrosion resistance may be needed. Neither grade is universally appropriate for every conveyed material or operating environment.
Greater wall thickness changes the tubing's weight, internal opening, and mechanical characteristics. It should be selected against the actual application requirements rather than on the assumption that thicker is always better.
Pressure applications: Standard industrial vacuum tubing should not be assumed to be pressure-rated. Any pressure-bearing installation requires suitable component ratings and engineering review of the complete system.
Dimensional Tolerances and Roundness
Dimensions shown in a catalog may be nominal. A tolerance specifies the allowable difference from the stated dimension. Ovality describes how much a tube differs from a circular shape.
When close fit or sealing performance matters, ask for the applicable product specification and confirm the coupling or fitting manufacturer's dimensional requirements. Different manufacturing standards, tubing types, and product lines can use different acceptance limits; no universal tolerance applies to every industrial vacuum tube.
Standards such as ASTM A269 and ASTM A554 apply to particular categories of stainless steel tubing, but a product should not be represented as complying with either standard unless its specifications or documentation confirm that designation.
What to Check Before Ordering
Tube Measurements
- Outside diameter (OD)
- Wall thickness (WT) or gauge
- Required length and quantity
- Material grade
- Applicable tolerance requirements, if any
Connections & Application
- Coupling or fitting style
- End configuration
- Elbow angle and centerline radius, if applicable
- Conveyed material and operating conditions
- Drawings or photos of existing components
For nonstandard components, see Custom Pipe Fabrication for information about preparing a dimensional inquiry.
Related Industrial Vacuum Components
Review the available product information and confirm specifications for your installation.
Frequently Asked Questions
Is tubing OD the same as nominal pipe size?
No. Tubing is often specified by actual outside diameter, while conventional pipe typically uses nominal pipe size. Check actual dimensions before matching components.
Does a smaller gauge number mean a thicker wall?
Usually within the same gauge system, yes. However, gauge designations can vary. Confirm the wall thickness in inches or millimeters when fit or engineering requirements matter.
Can I calculate tubing ID from OD and wall thickness?
For a round tube with uniform wall thickness, nominal ID equals OD minus twice the wall thickness. Actual dimensions can vary within manufacturing tolerances.
What dimensions are needed for a compression coupling?
Start with the actual tubing OD. Also confirm the connection type, tube-end condition, gasket compatibility, and the coupling manufacturer's size and installation requirements.
Can stainless steel industrial vacuum tubing be used for positive pressure?
Do not assume so. Pressure suitability depends on the tubing specification, fittings, joints, operating conditions, and applicable engineering requirements.
Need Help Identifying Tubing Dimensions?
If you are matching an existing industrial vacuum tubing section or fitting, include the measured OD, wall thickness, material, length, and connection details in your inquiry. Drawings or photographs can also help clarify the requirement.
