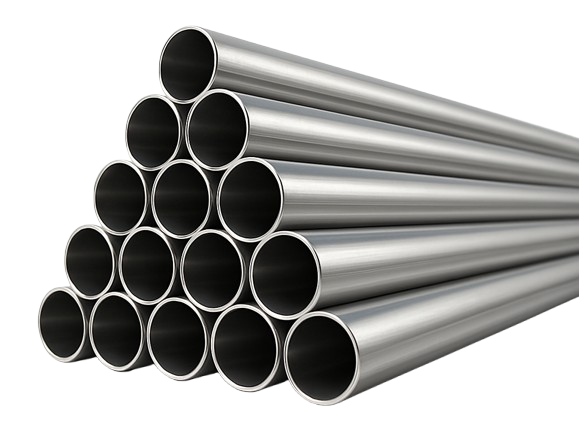

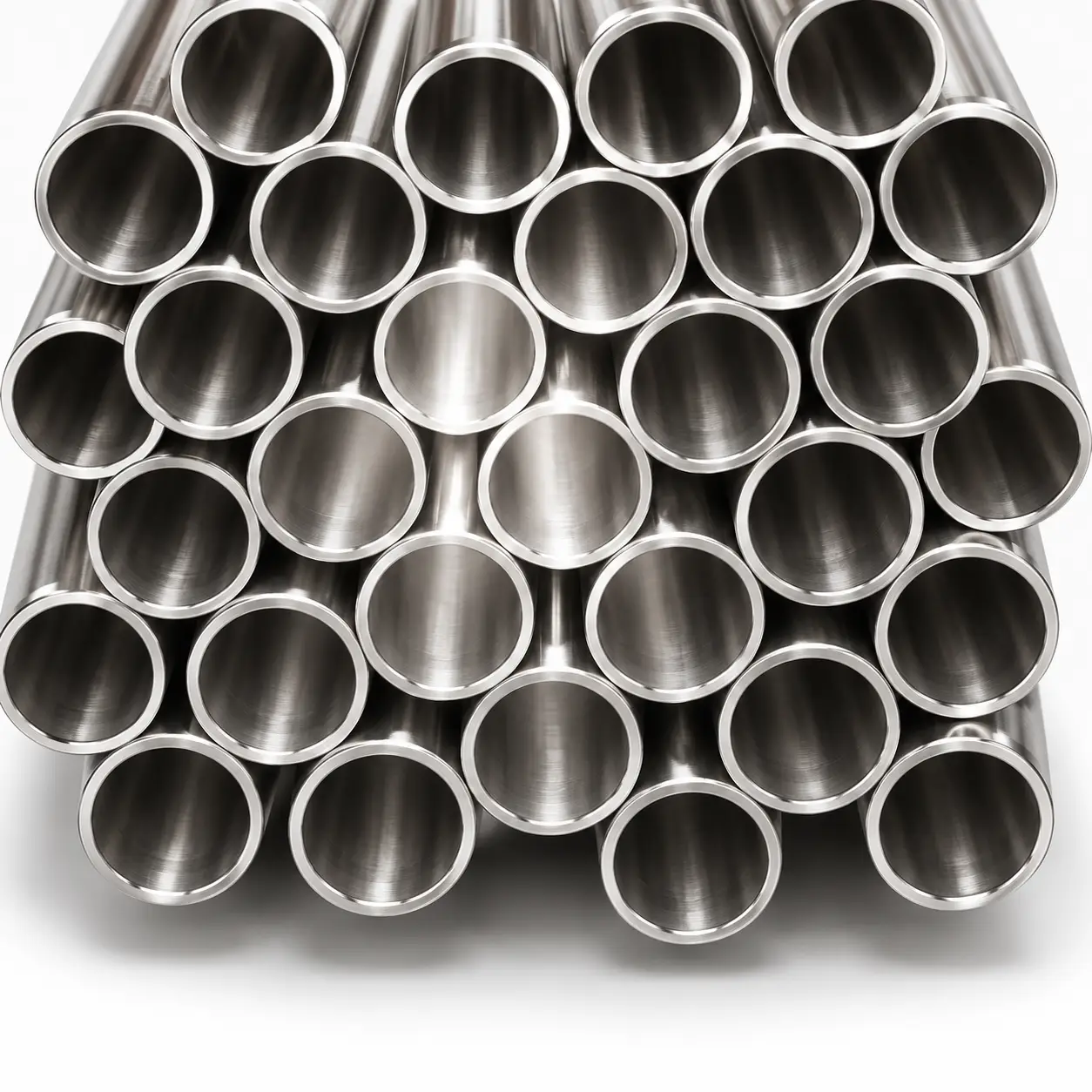

Vacuum-Tubing.com supplies industrial vacuum tubing for central vacuum systems, pneumatic conveying, dust collection, material handling and facility cleanup applications. Tubing is available in multiple outside diameters, wall thicknesses and materials including carbon steel, galvanized steel, aluminum and stainless steel.
Our tubing is designed to work with industrial elbows, branch fittings, reducers, adapters, compression couplings and other vacuum-system components for complete piping installations.
| O.D. | Gauge | Industrial Vacuum Tubing / Part Numbers | |||
|---|---|---|---|---|---|
| Carbon | Galvanized | Aluminum | Stainless | ||
| 1-1/2 | 16 | 16WT150C | 16WT150Z | 16ST150A | 16WT150S |
| 2 | 16 | 16WT200C | 16WT200Z | 16SWT200A | 16WT200S |
| 2 | 11 | 11WT200C | 11WT200Z | 11ST200A | 11WT200S |
| 2-1/8 | 16 | 16WT212C | 16WT212Z | 16ST212A | 16WT212S |
| 2-1/8 | 11 | 11WT212C | 11WT212Z | 11ST212A | 11WT212S |
| 2-1/2 | 16 | 16WT250C | 16WT250Z | 16ST250A | 16WT250S |
| 2-1/2 | 11 | 11WT250C | 11WT250Z | 11ST250A | 11WT250S |
| 3 | 16 | 16WT300C | 16WT300Z | 16ST300A | 16WT300S |
| 3 | 11 | 11WT300C | 11WT300Z | 11ST300A | 11WT300S |
| 3-1/2 | 16 | 16WT350C | 16WT350Z | 16ST350A | 16WT350S |
| 3-1/2 | 11 | 11WT350C | 11WT350Z | 11ST350A | 11WT350S |
| 4 | 16 | 16WT400C | 16WT400Z | 16ST400A | 16WT400S |
| 4 | 11 | 11WT400C | 11WT400Z | 11ST400A | 11WT400S |
| 4-1/2 | 11 | 11WT450C | NA | 11ST450A | 11WT450S |
| 5 | 11 | 11WT500C | 11WT500Z | 11ST500A | 11WT500S |
| 5 | 14 | 14WT500C | 14WT500Z | 14ST500A | 14WT500S |
| 6 | 11 | 11WT600C | 11WT600Z | 11ST600A | 11WT600S |
| 6 | 14 | 14WT600C | 14WT600Z | 14ST600A | 14WT600S |
| 8 | 11 | 11WT800C | 11WT800Z | 11ST800A | 11WT800S |
| 8 | 14 | 14WT800C | 14WT800Z | 14ST800A | 14WT800S |
| 10 | 12 | 12WT1000C | 12WT1000Z | 12ST1000A | 12WT1000S |
| 12 | 12 | 12WT1200C | 12WT1200Z | NA | 12WT1200S |
| 14 | 12 | 12WT1400C | 12WT1400Z | NA | 12WT1400S |
Durable industrial tubing for general vacuum, conveying and material-handling applications.
Provides added corrosion protection for industrial vacuum and pneumatic conveying installations.
Lightweight tubing that simplifies installation while providing a smooth internal conveying surface.
Corrosion-resistant tubing for demanding environments, food-processing applications and specialized material handling.
Industrial vacuum tubing is commonly used in fixed central vacuum systems for plant cleanup, material collection and process support. Tubing can be combined with elbows, branch fittings, reducers, inlet valves and vacuum tools to build complete vacuum piping networks.
Vacuum tubing is used in pneumatic conveying systems to move powders, pellets and other dry bulk materials through production and processing facilities. Proper tubing diameter, wall thickness, elbows and joining methods help maintain airflow and reliable material movement.
Industrial vacuum tubing can be used for dust extraction and source-capture piping where dry dust and particulate need to be transported to a collection system. Smooth tubing and properly sized fittings help support efficient airflow throughout the system.
Industrial vacuum tubing supports dry material handling applications throughout manufacturing, packaging and processing facilities. Tubing systems can be configured with branches, reducers, adapters and couplings to route material between equipment and collection points.
Industrial vacuum tubing can be joined using several connection methods depending on tubing diameter, wall thickness, material and installation requirements. Common joining options include compression couplings, Quick or Super Grip couplings, slip couplings and shrink sleeves.
Compression couplings provide a secure mechanical connection between straight sections of industrial vacuum tubing. They are commonly used where a strong, serviceable connection is required without permanently welding the tubing together.
Quick and Super Grip couplings provide a fast mechanical joining method for industrial vacuum tubing. These couplings are useful where tubing sections may need to be installed, removed or serviced without permanent connections.
Slip couplings are solid sleeve-style fittings used to join straight tubing or pipe ends. They can be welded, brazed or used with compatible shrink sleeves depending on the tubing system and installation requirements.
Shrink sleeves provide a simple joining option for compatible light-wall vacuum tubing systems. They are commonly used with slip couplings to create a sealed connection between tubing sections.
Industrial vacuum elbows and bends are used to change direction while maintaining airflow through vacuum and pneumatic conveying systems.
Branch fittings are used to divide or combine airflow and material flow within industrial vacuum and pneumatic conveying piping systems.
Reducers provide smooth transitions between different tubing diameters and help connect varying system sizes throughout industrial piping installations.
Reducers provide smooth transitions between different tubing diameters and help connect varying system sizes throughout industrial piping installations.
Male and female adapters connect industrial vacuum tubing to threaded pipe, equipment ports and other system components.
Industrial vacuum tubing is available in carbon steel, galvanized steel, aluminum and 304 stainless steel. Material availability may vary by tubing diameter, wall thickness and application requirements.
Industrial vacuum tubing is available in a wide range of outside diameters, from smaller tubing sizes through larger industrial system sizes. Available gauge and material options vary by tubing diameter.
The correct wall thickness depends on tubing diameter, material, system vacuum level, conveying requirements and the type of material being handled. Common options include 16, 14, 12 and 11 gauge depending on tubing size.
Industrial vacuum tubing can be connected using compression couplings, Quick or Super Grip couplings, slip couplings, shrink sleeves and other joining methods. The correct connection method depends on tubing size, wall thickness and installation requirements.
Yes. Industrial vacuum tubing is commonly used in pneumatic conveying systems for moving powders, pellets and other dry bulk materials. It is also used in central vacuum, dust collection and material handling systems.
Yes. Provide the tubing outside diameter, material, wall thickness, system application and any connection requirements, and we can help identify the appropriate tubing and compatible fittings for your system.
