Industrial vacuum elbows are used to change direction in vacuum tubing, dust collection piping and pneumatic conveying systems while helping maintain smooth airflow through the line. These elbows are commonly used in central vacuum systems, material handling lines, woodworking dust collection, powder conveying, industrial cleanup systems and manufacturing process piping.

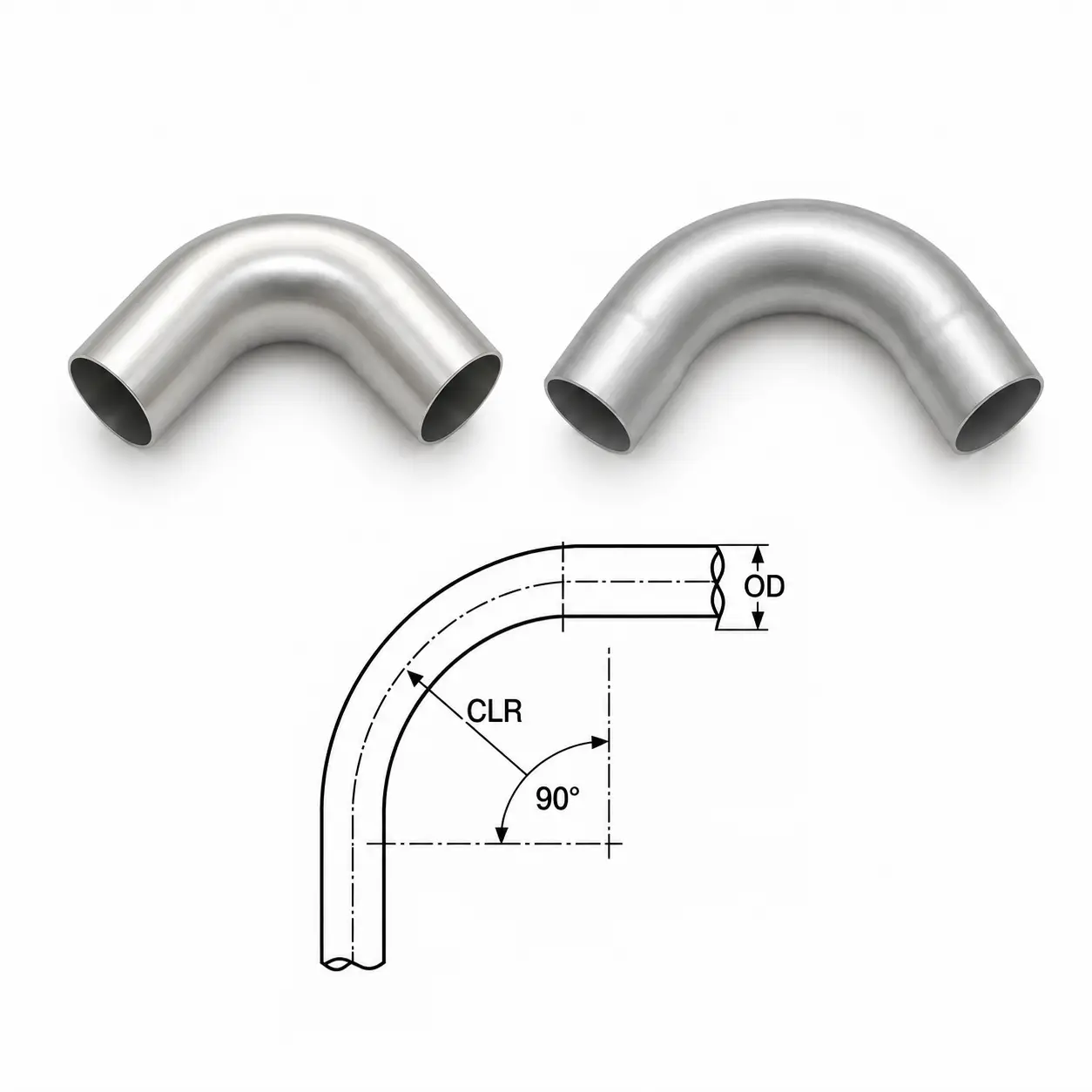

Vacuum tubing elbows are available in multiple configurations, including short radius elbows, standard radius elbows and long radius bends. Short radius elbows are useful where space is limited, while standard radius elbows provide a balanced option for general vacuum piping layouts. Long radius bends are often selected where smoother airflow and reduced pressure drop are important.
Industrial vacuum elbows are used throughout central vacuum, pneumatic conveying, dust collection and material handling systems to change direction while maintaining efficient airflow. Different elbow radii and materials can be selected based on available space, conveyed material, system layout and operating conditions.
Industrial vacuum elbows are used to route central vacuum piping around walls, equipment and structural obstacles while maintaining airflow through the system. The correct elbow radius helps balance available space with system performance.
Vacuum elbows are commonly used in pneumatic conveying systems to change material flow direction between tubing runs. Standard and long radius elbows are often preferred where smoother airflow and reduced material impact are important.
Industrial vacuum elbows help route dust collection piping from pickup points to collection equipment. Properly selected elbows support efficient airflow while allowing the piping system to navigate around machinery and building structures.
Vacuum elbows are used throughout dry material handling systems to guide powders, pellets and other bulk materials through changing directions. Elbow radius and material selection should match the conveyed product and operating conditions.
Durable industrial vacuum elbows for general central vacuum, dust collection, pneumatic conveying and material handling applications.
Galvanized steel elbows provide added corrosion protection for industrial vacuum, dust collection and pneumatic conveying piping systems.
Lightweight aluminum elbows provide smooth directional changes while helping reduce installation weight in industrial vacuum and conveying systems.
Corrosion-resistant 304 stainless steel elbows are suited for demanding environments, food processing and specialized material handling applications.
Industrial vacuum elbows are available in multiple outside diameters, gauges and radius configurations. Availability varies by material and elbow type, including short radius, standard radius and long radius designs for different vacuum, dust collection and pneumatic conveying applications.

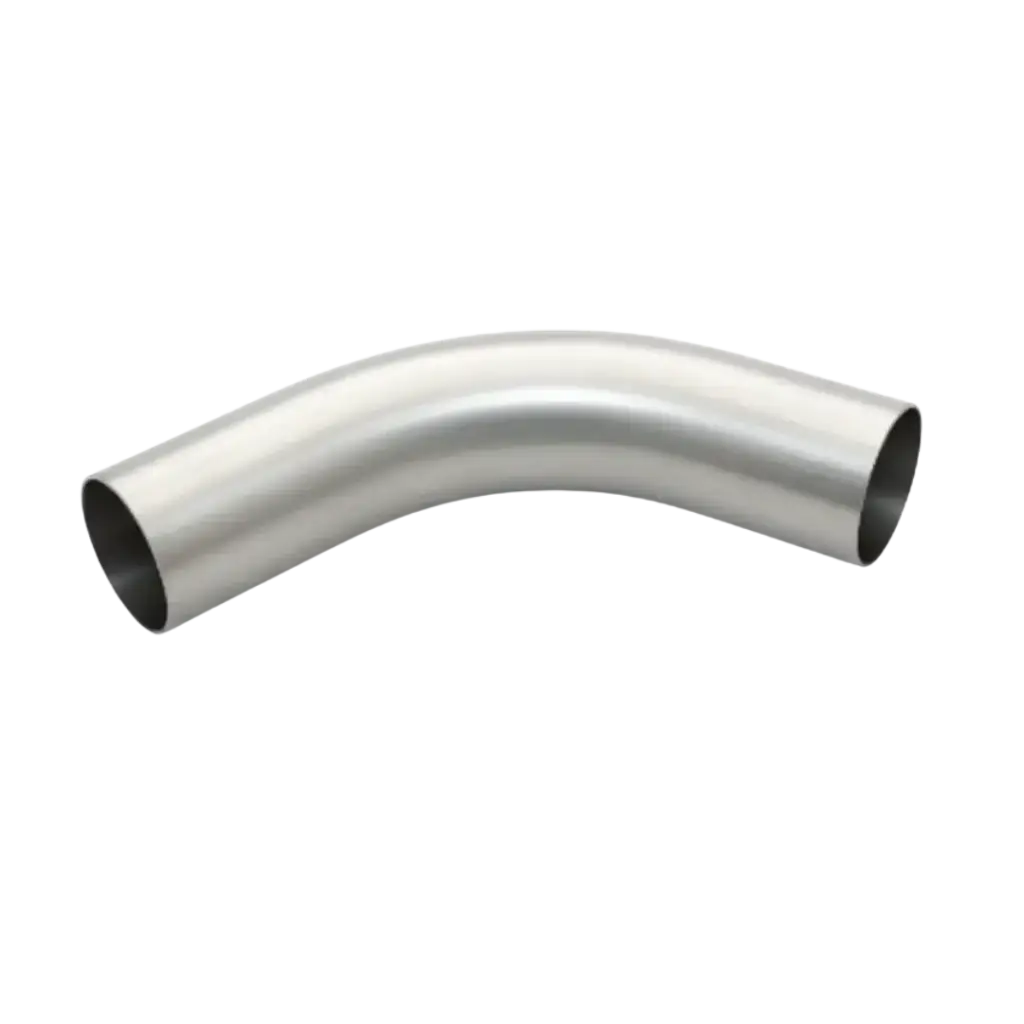

Short radius elbows are a compact option for industrial vacuum systems where installation space is limited. They create a tighter directional change and are best suited for layouts where a larger bend radius will not fit.
Long radius elbows provide the smoothest directional transition and are often preferred for pneumatic conveying and higher-airflow systems. The larger centerline radius can help reduce pressure drop, turbulence and material impact through the bend.
Long radius elbows provide the smoothest directional transition and are often preferred for pneumatic conveying and higher-airflow systems. The larger centerline radius can help reduce pressure drop, turbulence and material impact through the bend.
Industrial vacuum tubing provides the straight piping sections used to build central vacuum, dust collection and pneumatic conveying systems. It connects with elbows, branch fittings, reducers, adapters and couplings to create complete industrial piping layouts.
Branch fittings are used to divide or combine airflow and material flow within industrial vacuum and pneumatic conveying piping systems.
Reducers provide smooth transitions between different tubing diameters and help connect varying system sizes throughout industrial piping installations.
Reducers provide smooth transitions between different tubing diameters and help connect varying system sizes throughout industrial piping installations.
Male and female adapters connect industrial vacuum tubing to threaded pipe, equipment ports and other system components.
Industrial vacuum elbows are available in carbon steel, galvanized steel, aluminum and 304 stainless steel. Material availability varies by elbow type, diameter, gauge and application requirements.
Industrial vacuum elbows are available in a range of outside diameters and wall thicknesses. Available sizes vary by material and by short radius, standard radius or long radius configuration.
Short radius elbows provide a compact directional change where space is limited. Standard radius elbows offer a balanced option for general system layouts, while long radius elbows provide a smoother transition that can help reduce turbulence and pressure drop.
Standard and long radius elbows are commonly used in pneumatic conveying systems. Long radius elbows are often preferred where smoother airflow, reduced material impact and lower pressure loss are important.
Yes. Industrial vacuum elbows are commonly used in dust collection systems to route piping around equipment, walls and other obstacles while maintaining airflow between pickup points and collection equipment.
Industrial vacuum elbows can be connected to tubing using compression couplings, Quick or Super Grip couplings, slip couplings, shrink sleeves and other compatible joining methods depending on the tubing size and system requirements.
