Standard radius vacuum elbows

Choose From One of The Following Standard Radius Elbow Options

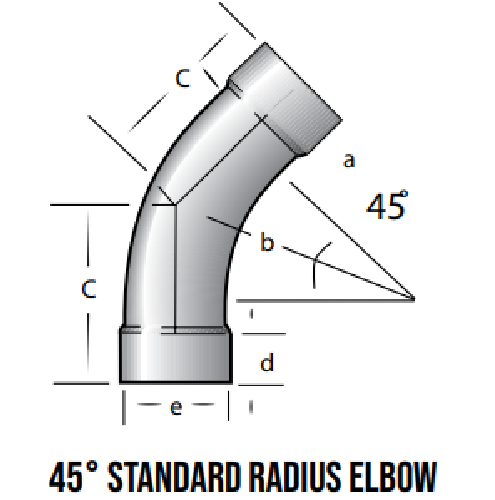

		Standard Radius Elbow 45º Standard radius elbows available in: Carbon steel standard radius elbows Galvanized steel Standard radius elbows Aluminum 6061 Standard radius elbows 304 SS standard Radius Elbows Expanded ends standard through 6″ Straight Ends available on all sizes D 1-1/4 thru 4″, 1-1/2″ for 5″Ø & 6″ E Inside Diameter (I.D.) = A CLR Center Line Radius All dimensions are in inches
Part No.	A – o.d.	Tangent	B – CLR	C	Gauge
EL-211	2 1/8	2	5	4 5/16	16
EL-251	2 1/2	2	6	4 1/2	16
EL-301	3	2	7 1/2	5 1/8	16
EL-351	3 1/2	2	8 3/4	5 5/8	16
EL-401	4	2	10	6 1/8	16
EL-501	5	2-5/8	12 1/2	7 13/16	14
EL-601	6	3-1/4	15	9 15/32	14
EL-801	8	4-1/4	20	12 17/32	14
EL-1001	10	15	32	28 1/4	12
EL-1201**	12	6-1/4	36	21 5/32	12
EL-1401**	14	7-1/4	36	22 5/32	12

** segmented

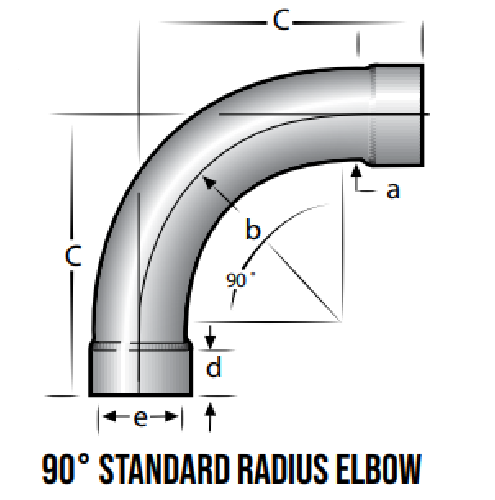

		Standard Radius 90º Standard radius elbows available in: Carbon steel standard radius elbows Galvanized steel Standard radius elbows Aluminum 6061 Standard radius elbows 304 SS standard Radius Elbows Expanded ends standard through 6″ Straight Ends available on all sizes D 1-1/4 thru 4″, 1-1/2″ for 5″Ø & 6″ E Inside Diameter (I.D.) = A CLR Center Line Radius All dimensions are in inches
Part No.	A – o.d.	B – CLR	Tangent	C	Gauge
EL-212	2 1/8	5	2	7	16
EL-252	2 1/2	6	2	8	16
EL-302	3	7 1/2	2	9 1/2	16
EL-352	3 1/2	8 3/4	2	10 1/4	16
EL-402	4	10	2	12	16
EL-502	5	12 1/2	2-5/8	15 1/8	14
EL-602	6	15	3-1/4	18 1/4	14
EL- 802	8	20	4 1/4	24 1/4	14
EL-1002	10	32	15	47	12
EL-1202**	12	36	6 1/4	42 1/4	12
EL-1402**	14	36	7 1/4	43 1/4	12

** segmented
