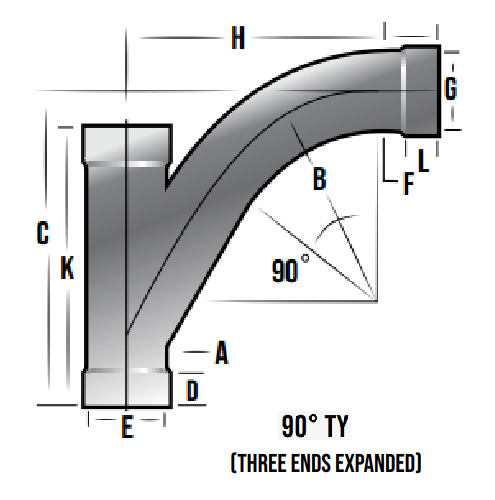

2-1/8″Ø to 4″Ø – 16 Ga 5″Ø to 8″Ø – 14 Ga 10″Ø to 14″Ø – 12 Ga All dimensions (inches)		90 Degree TY Industrial vacuum tubing fittings 90 degree TY Combo Available in: Carbon Steel, Galvanized Steel, Aluminum 6061, 304 SS Expanded ends standard through 6″. Straight Ends available on all sizes. D 1-1/4″ thru 4″Ø, 1-1/2″ for 5″Ø & 6″Ø E Inside Diameter (I.D.) = A G Inside Diameter (I.D.) = F L 1-1/4″ thru 4″Ø, 1-1/2″ for 5″Ø & 6″Ø Table: Industrial vacuum tubing fittings 90 degree TY Combo
Part No.	Size	A – o.d.	B	C	F – o.d.	H	K
TY215	2-1/8	2-1/8	5	9 3/32	2-1/8	4 11/16	9 1/2
TY-255	2-1/2 x 2-1/8	2-1/2	5	9 9/32	2-1/8	4 7/8	10
TY-256	2-1/2	2-1/2	6	10 5/32	2-1/2	5 3/16	10
TY-305	3 x 2-1/8	3	5	9 17/32	2-1/8	5 1/8	10-1/2
TY-306	3 x 2-1/2	3	6	10 13/32	2-1/2	5 7/16	10-1/2
TY-307	3	3	7 1/2	11 19/32	3	5 29/32	10-1/2
TY-355	3-1/2 x  2-1/8	3-1/2	5	9 25/32	2-1/8	5 3/8	11
TY-356	3-1/2 x 2-1/2	3-1/2	6	10 21/32	2-1/2	5 11/16	11
TY-357	3-1/2 x 3	3-1/2	7 1/2	11 27/32	3	6 5/32	13
TY-358	3-1/2	3-1/2	8 3/4	12 31/32	3-1/2	6 9/16	13
TY-405	4 x 2-1/8	4	5	10 1/32	2-1/8	5 5/8	12
TY-406	4 x 2-1/2	4	6	10 29/32	2-1/2	5 15/16	12
TY-407	4 x 3	4	7 1/2	12 3/32	3	6 13/32	12
TY-408	4 x 3-1/2	4	8 3/4	13 7/32	3-1/2	6 13/16	14
TY-4091	4	4	10	14 11/32	4	7 1/4	14
TY-505	5 x 2-1/8	5	5	10 17/32	2-1/8	6 1/8	13
TY-506	5 x 2-1/2	5	6	11 13/32	2-1/2	6 7/16	13
TY-507	5 x 3	5	7 1/2	12 19/32	3	6 29/32	15-1/2
TY-508	5 x 3-1/2	5	8 3/4	13 23/32	3-1/2	7 5/16	15-1/2
TY-509	5 x 4	5	10	14 27/32	4	7 3/4	15-1/2
TY-515	5	5	12 1/2	17 9/16	5	9	15-1/2
TY-605	6 x 2-1/8	6	5	11 1/32	2-1/8	6 5/8	15
TY-606	6 x 2-1/2	6	6	11 29/32	2-1/2	6 15/16	15
TY-607	6 x 3	6	7 1/2	13 3/32	3	7 13/32	15
TY-608	6 x 3-1/2	6	8 3/4	14 7/32	3-1/2	7 13/16	17
TY-609	6 x 4	6	10	15 11/32	4	8 1/4	17
TY-614	6 x 5	6	12 1/2	18 1/16	5	9 1/2	21
TY-615	6	6	15	20 25/32	6	10 25/32	21

Part No.	Size	A – o.d.	B	C	F – o.d.	H	K
TY-805	8 x 2-1/8	8	5	12 3/32	2-1/8	11 3/4	18
TY-806	8 x 2-1/2	8	6	13 1/4	2-1/2	12 25/32	18
TY-807	8 x 3	8	7 1/2	14 7/8	3	14 9/32	18
TY-808	8 x 3-1/2	8	8 3/4	16 3/8	3-1/2	15 19/32	21
TY-809	8 x 4	8	10	17 7/8	4	16 29/32	21
TY-814	8 x 5	8	12 1/2	20 7/8	5	20 1/8	24
TY-815	8 x 6	8	15	23 7/8	6	23 11/32	24
TY-816	8	8	20	29 7/8	8	29 17/32	29
TY-1005	10 x 2-1/8	10	5	13 3/32	2-1/8	12 3/4	21
TY-1006	10 x 2-1/2	10	6	14 1/4	2-1/2	13 25/32	21
TY-1007	10 x  3	10	7 1/2	15 7/8	3	15 9/32	21
TY-1008	10 x 3-1/2	10	8 3/4	17 3/8	3-1/2	16 17/32	24
TY-1009	10 x 4	10	10	18 7/8	4	17 29/32	24
TY-1014	10 x 5	10	12 1/2	21 7/8	5	21 1/8	24
TY-1015	10 x 6	10	15	24 7/8	6	24 11/32	28
TY-1016	10 x 8	10	20	30 7/8	8	30 17/32	32
TY-1017	10	10	32	40 3/8	10	42 25/32	36
TY-1205	12 x 2-1/8	12	5	14 3/32	2-1/8	13 3/4	24
TY-1206	12 x 2-1/2	12	6	15 1/4	2-1/2	14 25/32	24
TY-1207	12 x  3	12	7 1/2	16 7/8	3	16 9/32	24
TY-1208	12 x 3-1/2	12	8 3/4	18 3/8	3-1/2	17 19/32	27
TY-1209	12 x 4	12	10	19 7/8	4	18 29/32	27
TY-1214	12 x 5	12	12 1/2	22 7/8	5	22 1/8	27
TY-1215	12 x 6	12	15	25 7/8	6	25 11/32	31
TY-1216	12 x 8	12	20	31 7/8	8	31 17/32	35
TY-1217	12 x 10	12	32	41 3/8	10	43 25/32	39
TY-1416	14 x 8	14	20	32 7/8	8	32 17/32	38
TY-1417	14 x 10	14	32	42 3/8	10	44 25/32	42
TY-1418	14 x 12	14	36**	47 7/8	12	50 1/8	46
TY-1419	14	14	36**	51 3/8	14	50 3/4	52

** segmented

A Summary of Industrial Vacuum Tubing Fittings 90 degree TY Combo

• Industrial vacuum tubing fittings 90 degree TY Combo’s are available with standard expanded ends through 6 inch diameter.
• TY-215-Z is the part number for a standard Industrial vacuum tubing fittings 45 degree TY Combo in zinc plated or galvanized steel in a two and one eighth inch size with expanded ends.
• TY-215-ZS is the part number for a galvanized Industrial vacuum tubing fittings 90 degree TY Combo in a two and one eighth inch size with straight ends.

Part numbers for other materials Industrial vacuum tubing fittings are as follows;

Aluminum-Industrial vacuum tubing fittings 90 degree TY Combo

Vacuum Fitting TY215 -A Standard Aluminum Expanded Ends

Vacuum Fitting TY215 -AS Aluminum Straight Ends

Carbon Steel Industrial vacuum tubing fittings 90 degree TY Combo

Vacuum Fitting TY215 -C Standard Carbon Steel Expanded Ends

Vacuum Fitting TY215 -CS Carbon Steel Straight Ends

Stainless Steel Industrial vacuum tubing fittings 90 degree TY Combo

Vacuum Fitting TY215 -S Standard Stainless Steel Expanded Ends

Vacuum Fitting TY215 -SS Stainless Steel Straight Ends

Other variations

Vacuum Fitting TY215 -S1S, Vacuum Fitting TY215 -S2S and Vacuum Fitting TY215 special tangents- please inquire.
